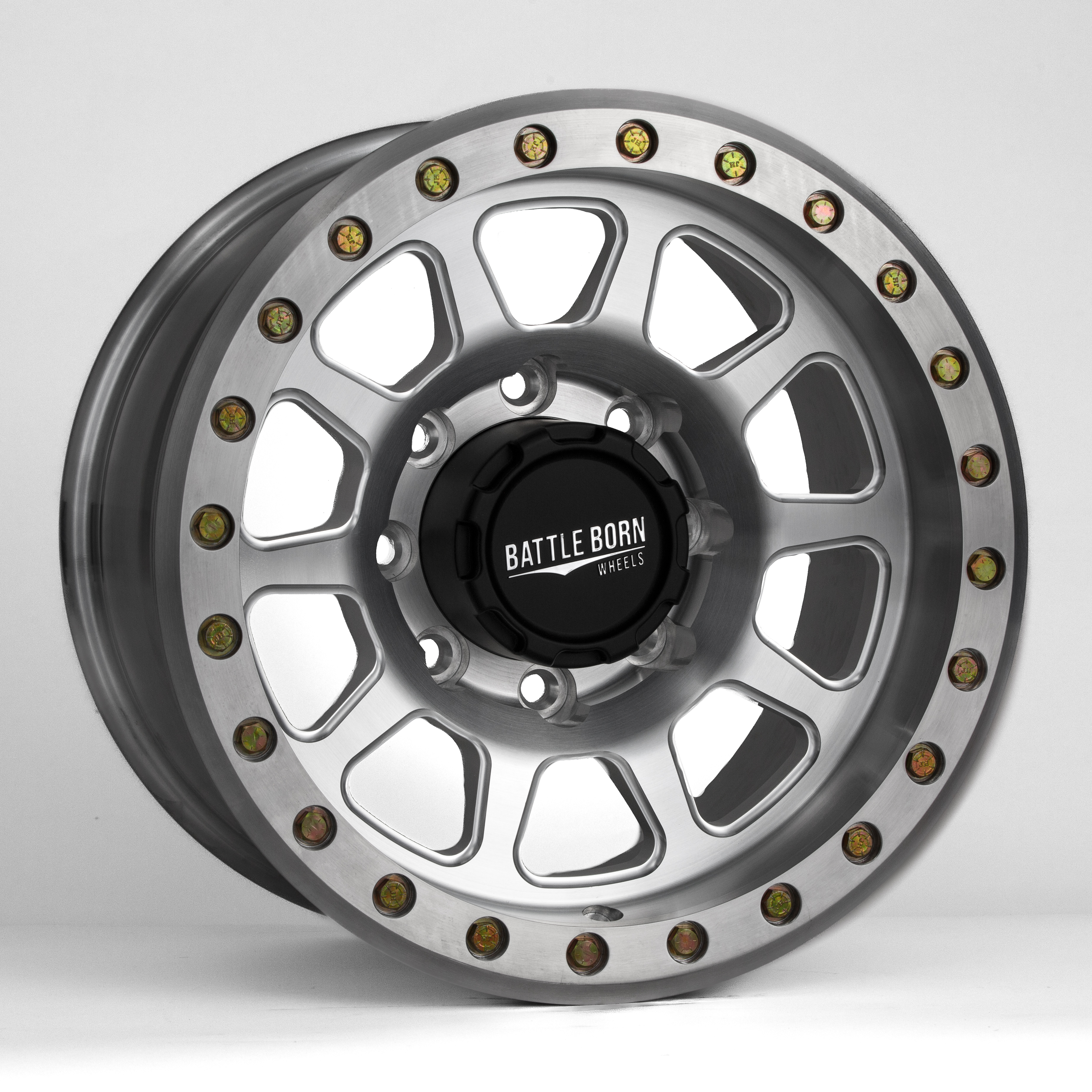

Sierra Flow Formed Beadlock
Sierra | Flow Formed Beadlock | 17x9
Our most popular Sierra size. The 17x9 Sierra Flow Formed Beadlock is built for serious off-road use, with multiple bolt pattern and backspace options available for Jeeps, Broncos, Toyotas, Rams, Fords, GMs, and other off-road platforms.
Sierra is built from flow formed aluminum—a process that starts with a cast center, then strengthens the barrel by applying pressure while the wheel spins. That stretching/compression refines the grain structure in the barrel for improved strength and durability compared to a conventional cast wheel.
Looking for 20" Sierra Beadlocks?
This listing is for the 17x9 Sierra Flow Formed Beadlock. If you’re looking for our 20x9 Sierra Beadlock, visit the 20" Sierra Beadlock Overstock Sale listing.
This listing is for the 17x9 Sierra Flow Formed Beadlock. If you’re looking for our 20x9 Sierra Beadlock, visit the 20" Sierra Beadlock Overstock Sale listing.
Fitment & Offset Options
Sierra 17x9 is offered in a wide range of bolt patterns with two primary backspace/offset options depending on application:
- 4.50" backspace (-13mm) — pushes the wheel outward for a wider stance.
- 5.00" backspace (0mm) — brings the wheel inward for a more balanced fit.
A lower backspace / negative offset option creates a wider stance and additional clearance for larger tires and suspension components. The 0mm option provides a more tucked fit while still offering off-road-friendly clearance.
We also machine an enlarged lug nut bore to improve socket clearance and lug nut compatibility.
Not sure what you need? Call or email us and we’ll help you confirm bolt pattern, backspace, offset, and hub bore before you order.
True Beadlock Ring
This listing is for the true beadlock version of the Sierra 17x9.
- True Beadlock Ring — intended for off-road / competition use.
- Forged 6061-T6 aluminum ring for strength and durability.
- Counterbored hardware pockets help protect bolt heads from trail damage.
- Weep holes are integrated to help water and debris escape after water crossings or washes.
- 48 redundant drilled & tapped holes in the wheel lip for long-term serviceability.
Need a Street-Friendly Version?
If you want the beadlock look for a daily-driven setup, check out the Sierra Simulated Accent Ring version.
Hardware & Build Details
- (24) Grade 8 zinc yellow-chromate plated hex head screws
- 3/8"-16 thread, 1-1/4" length
- Knurling applied on wheel lip and ring mating surfaces
- TPMS compatible
- Designed & CNC machined in Carson City, Nevada using imported flow formed castings
Finish Options
- Machined Raw Finish — run it as-is, polish it, or apply your own custom coating.
- Powdercoated Finish — available as an upgrade. Powdercoat adds additional lead time.
Lead Time: Please allow up to 2 weeks for CNC machining and/or coatings/finishes. Some high-demand 17" fitments may be backordered or reserved from incoming production.
Beadlock Ring Torque Spec: 25 ft-lbs
Questions? Reach out anytime:
775-400-4048
Sales@Battlebornwheels.com
Important: True beadlock wheels are intended for off-road use. Customer is responsible for confirming local regulations and proper installation/maintenance.
Key Specs
- Size: 17x9
- Flow formed aluminum construction
- Forged 6061-T6 beadlock ring
- Available in multiple bolt patterns and backspace options
- Slotted weep holes for drainage
- Extra-large lug nut socket clearance
- (24) Grade 8 ring bolts — 3/8"-16 x 1-1/4"
- 48 redundant drilled & tapped beadlock holes
- TPMS compatible
- Approximate weight: 35.7–37.6 lbs, depending on bolt pattern
- Load rating varies by bolt pattern: 2500 lbs or 4000 lbs
Want to size up?
We also offer the Sierra Beadlock in 20x9. View the 20" Sierra Beadlock listing here.
We also offer the Sierra Beadlock in 20x9. View the 20" Sierra Beadlock listing here.
| Part# | Model | Finish | Size | Bolt Pattern | Backspace | Offset | Bore | Weight | Load | Function | TPMS Compatibility |
|---|---|---|---|---|---|---|---|---|---|---|---|
| C179-5B-S-545-450-BRD-626 | Sierra | Machined | 17x9 | 5x114.3 | 4.50” | -13mm | 71.5mm | 37.6 lbs | 2500 lbs | Beadlock | Yes |
| C179-5B-S-545-500-BRD-626 | Sierra | Machined | 17x9 | 5x114.3 | 5.00” | 0mm | 71.5mm | 37.6 lbs | 2500 lbs | Beadlock | Yes |
| C179-5B-S-5127-450-BRD-626 | Sierra | Machined | 17x9 | 5x127 | 4.50” | -13mm | 71.5mm | 37.6 lbs | 2500 lbs | Beadlock | Yes |
| C179-5B-S-5127-500-BRD-626 | Sierra | Machined | 17x9 | 5x127 | 5.00” | 0mm | 71.5mm | 37.6 lbs | 2500 lbs | Beadlock | Yes |
| C179-5B-S-555-450-BRD-626 | Sierra | Machined | 17x9 | 5x139.7 | 4.50” | -13mm | 108mm | 37.6 lbs | 2500 lbs | Beadlock | Yes |
| C179-5B-S-555-500-BRD-626 | Sierra | Machined | 17x9 | 5x139.7 | 5.00” | 0mm | 108mm | 37.6 lbs | 2500 lbs | Beadlock | Yes |
| C179-5B-S-6135-450-BRD-626 | Sierra | Machined | 17x9 | 6x135 | 4.50” | -13mm | 108mm | 37.6 lbs | 2500 lbs | Beadlock | Yes |
| C179-5B-S-6135-500-BRD-626 | Sierra | Machined | 17x9 | 6x135 | 5.00” | 0mm | 108mm | 37.6 lbs | 2500 lbs | Beadlock | Yes |
| C179-5B-S-655-450-BRD-626 | Sierra | Machined | 17x9 | 6x139.7 | 4.50” | -13mm | 108mm | 37.6 lbs | 2500 lbs | Beadlock | Yes |
| C179-5B-S-655-500-BRD-626 | Sierra | Machined | 17x9 | 6x139.7 | 5.00” | 0mm | 108mm | 37.6 lbs | 2500 lbs | Beadlock | Yes |
| C179-8B-S-865-450-BRD-626 | Sierra | Machined | 17x9 | 8x165.1 | 4.50” | -13mm | 130.81mm | 35.7 lbs | 4000 lbs | Beadlock | Yes |
| C179-8B-S-865-500-BRD-626 | Sierra | Machined | 17x9 | 8x165.1 | 5.00” | 0mm | 130.81mm | 35.7 lbs | 4000 lbs | Beadlock | Yes |
| C179-8B-S-8170-450-BRD-626 | Sierra | Machined | 17x9 | 8x170 | 4.50” | -13mm | 130.81mm | 35.7 lbs | 4000 lbs | Beadlock | Yes |
| C179-8B-S-8170-500-BRD-626 | Sierra | Machined | 17x9 | 8x170 | 5.00” | 0mm | 130.81mm | 35.7 lbs | 4000 lbs | Beadlock | Yes |
| C179-8B-S-8180-450-BRD-626 | Sierra | Machined | 17x9 | 8x180 | 4.50” | -13mm | 130.81mm | 35.7 lbs | 4000 lbs | Beadlock | Yes |
| C179-8B-S-8180-500-BRD-626 | Sierra | Machined | 17x9 | 8x180 | 5.00” | 0mm | 130.81mm | 35.7 lbs | 4000 lbs | Beadlock | Yes |
Looking for a different finish? View our Powder Coating Options or contact us before ordering a custom powder coated wheel.
NEW RING OPTIONS
NOTCHED DRAINS
Notched ring is flush with the barrel of the wheel to let the crud out.
QUALITY GUARANTEED
All Battle Born Wheels include a replacement warranty covering any structural failure for a period of one year from original date of purchase. Including off-road use. Please see details here.
Endless Endeavor
Real-World Evaluation
Assessing the functionality and performance of something in actual operational conditions. The Sierra Flow Form wheels are built for the toughest environments.
True Beadlock vs. Simulated (DOT)
FULLY PROTECTED
COUNTERBORED
Rock-rash the beadlock rings, not your bolt heads...
why choose?
Form or Function
Something can be beautiful or it can be practical, rarely both. Until now... Balancing operational effectiveness with a polished appearance is what we do.
Precision and Efficiency
Reliable Performance
Consistently delivering results that can be depended upon.
Increase the friction
KNURLED BEADLOCK
Standard feature on our entire aluminum line.
Mission Success
Sierra Flow Formed Beadlock
Superior Performance: Demonstrating exceptional capabilities and effectiveness.
BBW
Too Thick?
Talking about your tires... Some have extremely thick beads causing "coning" of the ring and undesirable results. Our aluminum Anti-Coning Spacer kits are affordable and good in stock.
